$19.50
Original: $65.00
-70%Direct Coupled General Purpose Non-Spring Return Actuator, 24VAC/DC, 50/60 Hertz—
$65.00
$19.50The Story

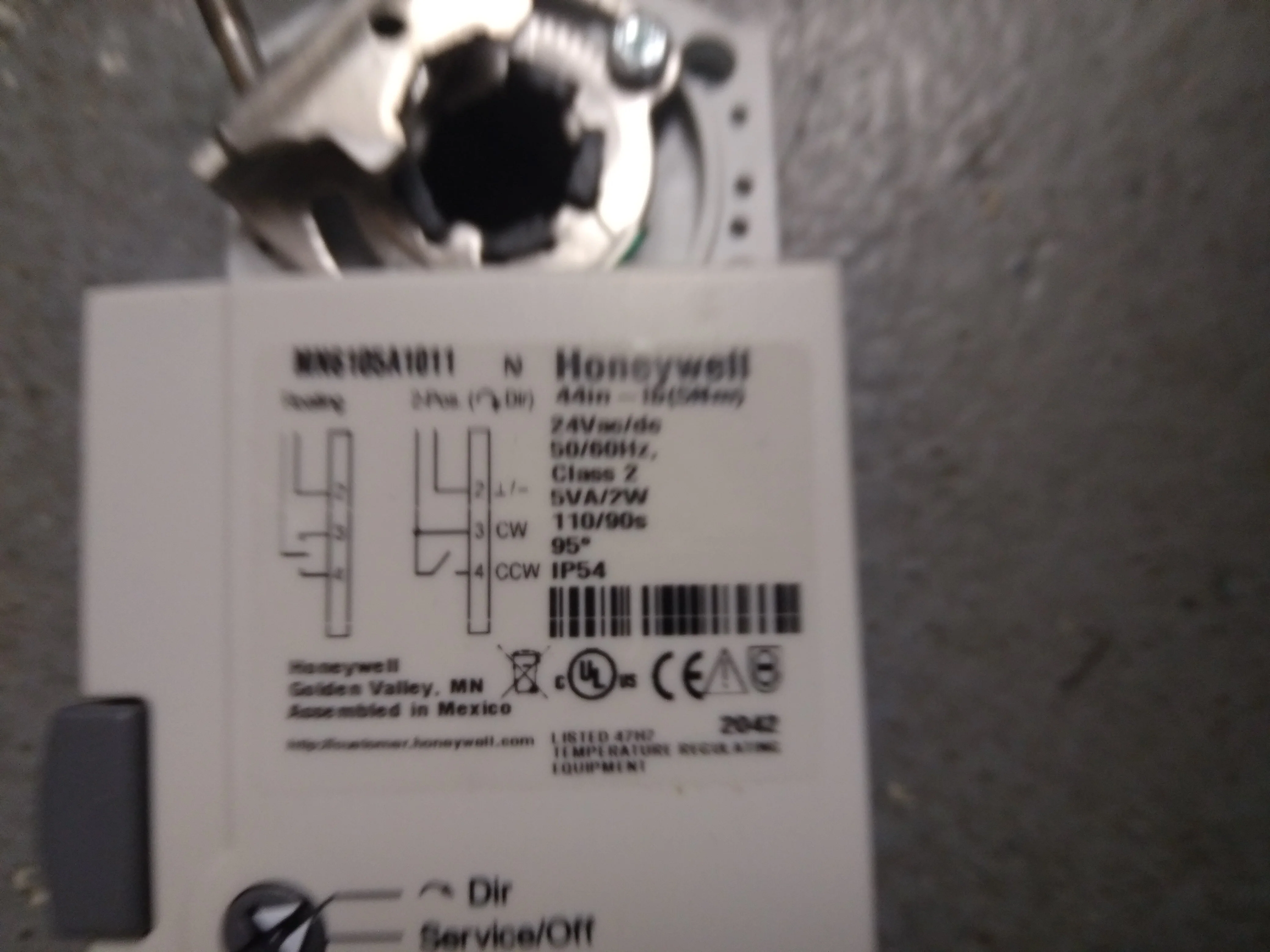

Direct Coupled General Purpose,Non-Spring Retuator Actuator.Voltage:24 Vac/Dc,50/60 Hertz:Control Signal:2 Position,Floating,Actuator Type:Damper,Valve, Fail Safe Mode:Non-Spring Return, Number Of Internal Auxiliary Switch:0, Shaft Adapter Type:U-Bolt Clamp, Mounting:Direct Coupled, Rotation Stroke:95 /- 3 Degress, Rotation To Open:By Switch, Applications With Up To 10Sq.Ft./44Lb.-In.(5Nm) And 20 Sq.Ft./88 Lb.-In.(Seal-Less Damper Blades; Air Friction-Dependent), 110/90Sec. For 90Deg. Floating, Compatible Damper Shafts:1/4 To 1/2" Square Or 3/8 To 5/8" Round.Temp Range:-5Degf. To 140Degf.Dims:5-3/4"H X 2-5/8"W X 2-1/2"D, Weight:1.30 Pounds, (Made In Mexico) Mfg/Box.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Direct Coupled General Purpose,Non-Spring Retuator Actuator.Voltage:24 Vac/Dc,50/60 Hertz:Control Signal:2 Position,Floating,Actuator Type:Damper,Valve, Fail Safe Mode:Non-Spring Return, Number Of Internal Auxiliary Switch:0, Shaft Adapter Type:U-Bolt Clamp, Mounting:Direct Coupled, Rotation Stroke:95 /- 3 Degress, Rotation To Open:By Switch, Applications With Up To 10Sq.Ft./44Lb.-In.(5Nm) And 20 Sq.Ft./88 Lb.-In.(Seal-Less Damper Blades; Air Friction-Dependent), 110/90Sec. For 90Deg. Floating, Compatible Damper Shafts:1/4 To 1/2" Square Or 3/8 To 5/8" Round.Temp Range:-5Degf. To 140Degf.Dims:5-3/4"H X 2-5/8"W X 2-1/2"D, Weight:1.30 Pounds, (Made In Mexico) Mfg/Box.
