1/3HP Condenser Fan Motor 208-230/60/1 RPM:825/1-Speed
HomeStore

1/3HP Condenser Fan Motor 208-230/60/1 RPM:825/1-Speed

1/3HP Condenser Fan Motor 208-230/60/1 RPM:825/1-Speed

$242.00
1/3HP Condenser Fan Motor 208-230/60/1 RPM:825/1-Speed—
$242.00

The Story

1/3HP Condenser Fan Motor, Voltage:208-230, Phase:1, Hertz:60, Amps:2.3, Frame:48Y, Type:PSC 12.5 X 370(Not Included), Mounting:Thru Bolt, Bearing:Sleeve, Body:Totally Enclosed Air-Over, RPM:825/1-Speed, Rotation:Counter Clockwise Lead End, Shaft:1/2"Double Flat X 3", Duty:Continuous, Motor Dia.:5-5/8", Motor Length Less Shaft:5-1/4", Overall Length:8-1/4", Weight:16.40 Pounds, Made In Mexico, Mfg/Box.

1/3HP Condenser Fan Motor 208-230/60/1 RPM:825/1-Speed - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

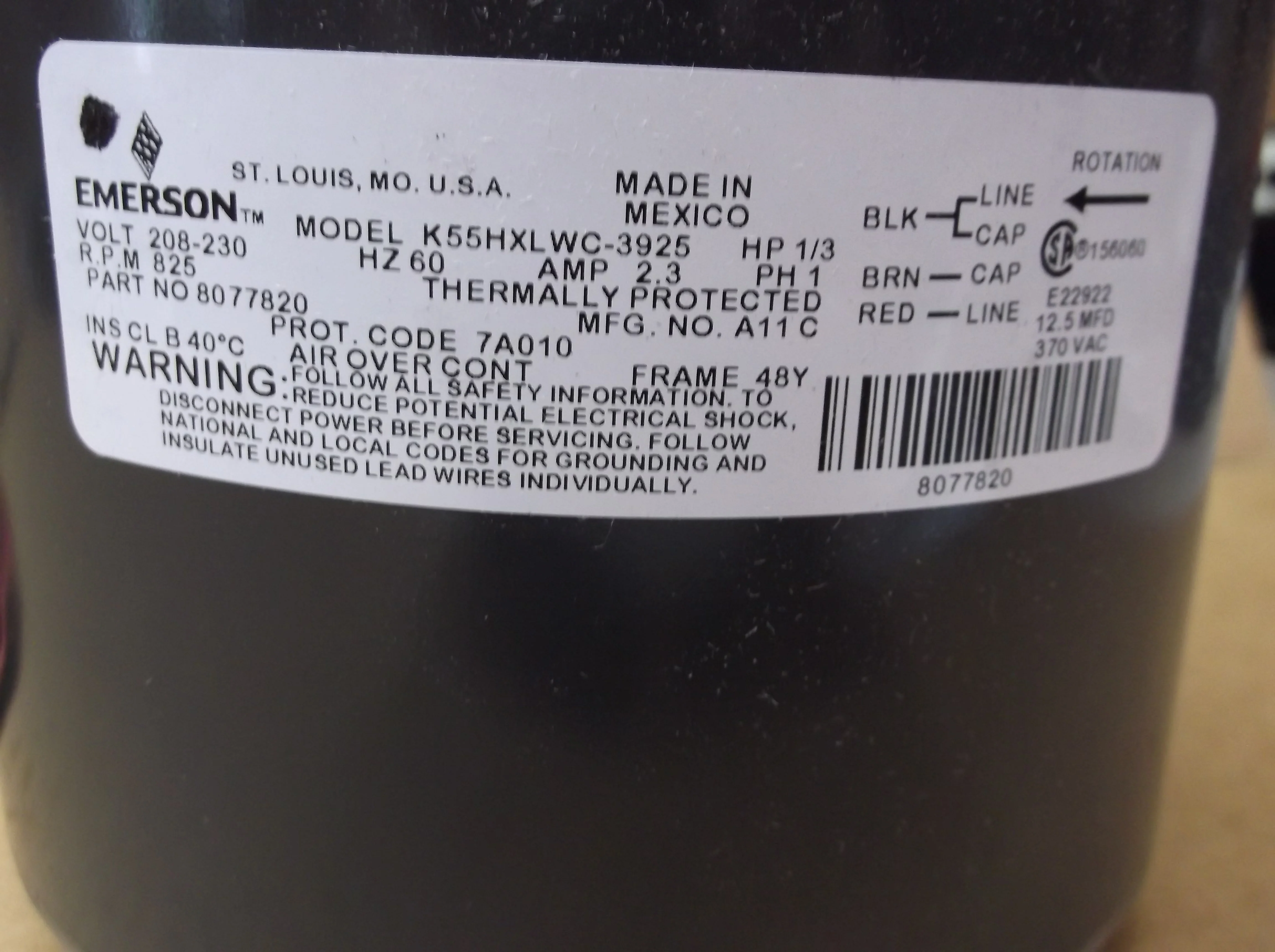

1/3HP Condenser Fan Motor 208-230/60/1 RPM:825/1-Speed - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

1/3HP Condenser Fan Motor 208-230/60/1 RPM:825/1-Speed - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

1/3HP Condenser Fan Motor 208-230/60/1 RPM:825/1-Speed - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

1/3HP Condenser Fan Motor 208-230/60/1 RPM:825/1-Speed - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

1/3HP Condenser Fan Motor, Voltage:208-230, Phase:1, Hertz:60, Amps:2.3, Frame:48Y, Type:PSC 12.5 X 370(Not Included), Mounting:Thru Bolt, Bearing:Sleeve, Body:Totally Enclosed Air-Over, RPM:825/1-Speed, Rotation:Counter Clockwise Lead End, Shaft:1/2"Double Flat X 3", Duty:Continuous, Motor Dia.:5-5/8", Motor Length Less Shaft:5-1/4", Overall Length:8-1/4", Weight:16.40 Pounds, Made In Mexico, Mfg/Box.
